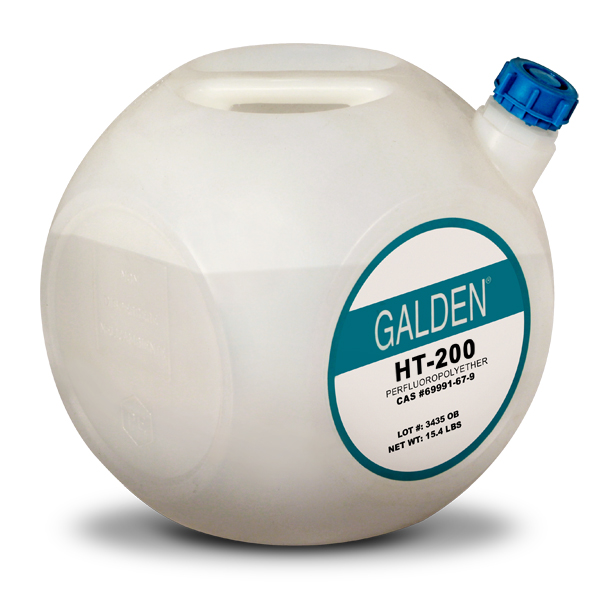

Galden HT-200 PFPE Heat Transfer Fluid 15.43lb (7kg) Bottle

$ 1,640.00

AVAILABILITY: In Stock Can Ship Right Now

Out of stock

SKU: GALDENHT200-7KG Category: Tag:

Description

Galden HT-200 PFPE Heat Transfer Fluid 15.43lb (7kg) Bottle

Galden HT-200 PFPE heat transfer fluid is a line of dielectric fluids with boiling points ranging from 55° C to 270° C. The excellent dielectric properties of these perfluorinated polyethers (PFPE) and their high chemical stability combined with the capacity to operate at very low as well as elevated temperatures, make them the best heat transfer fluids for the aggressive conditions found in semiconductor, electronic, and solar industries.

Galden HT-200 PFPE Heat transfer Fluid: Operating temperature range

Galden ht pfpe-operating temperature range

Grade HT55 HT70 HT80 HT110 HT135 HT170 HT200 HT230 HT270
Vapor Pressure (Torr) 225 141 105 17 5.8 0.8 0.2 0.025 0.01
Pour Point
(° C)
-110 -115 <-110 -110 -110 -97 -85 -77 -66
Boiling Point
(° C)
55 70 80 110 135 170 200 230 270
Specific Heat (J/g) 0.232 0.232 0.232 0.232 0.232 0.232 0.232 0.232 0.232
Surface Tension 16 14 16 16 17 18 19 19 20
Molecular Weight 340 410 430 580 610 760 870 1020 1550
Heat of Vaporization 22 17 17 17 16 16 15 15 15
Kinematic Viscosity (cSt) 0.45 .050 0.57 0.77 1.00 1.80 2.40 4.40 11.70
Thermal Conductivity 0.065 0.065 0.065 0.065 0.065 0.065 0.065 0.065 0.065
Relative Density 1.65 1.68 1.69 1.71 1.72 1.77 1.79 1.82 1.85
Volume Resistivity 1 x 1012 1 x 1015 1.5 x 1015 1.5 x 1015 1.5 x 1015 1.5 x 1015 6 x 1015 6 x 1015 6 x 1015
Solubility of Water
(ppm by wt)
14 14 14 14 14 14 14 14 14
Dielectric Strength 40 40 40 40 40 40 40 40 40
Dielectric Constant 1.86 1.88 1.89 1.92 1.92 1.94 1.94 1.94 1.94
Solubility of Air
(cm3 gas/100 cm3 liquid)
26 26 26 26 26 26 26 26 26
Operating Range
(° C)
-90 to 45 -75 to 60 -70 to 70 -60 to 100 -50 to 125 -30 to 160 -20 to 190 0 to 220 25 to 260

Material Safety Data Sheet Galden HT-200 PFPE

Galden PFPE Heat Transfer Fluids >>

Areas of Application

Electronic

  • Direct immersion
  • Etcher – PVD, CVD
  • Ion implanter
  • Radar

Nuclear

  • UF6 production

Electrical

  • Transformer
  • Power supplies

Chemical

  • Aggressive conditions

Pharmaceutical

  • Freeze dryer



Additional information

Weight 18 lbs
Dimensions 16 × 16 × 16 in

Brand

Solvay
